Pipeline System

Coupling Systems

Why buy Proline?

  Pipeline System

Only the original PROLINE spare part contains the competence and years of experience of the manufacturer.​

• Quality at the highest level​

• Safety without compromise: Pipes not approved by Putzmeister can lead to loss of the stability certificate. In addition, these can lead to loss of warranty as well as legal operator risks.​

• Conform to CE wide valid norms & safety standards (e.g. EN12001:2012) ​

• Tried and tested components are optimally matched to the respective machine​

• Are an exact fit and save assembly costs​



Quality levels

Proline 3000

Twin layer pipe, 85 bar, up to 67 HRC

Proline 2000

Twin layer pipe, 85 bar, 63 HRC

Proline 1000

Single layer pipe S355 (=ST52), 85 bar

Coupling Systems

SK system – Undeniably robust, no matter how you twist and turn it

The SK quick-release coupling system is ideal if pipelines must be installed flexibly and quickly, and concrete pressures are up to 85 bar*. They can also be rotated axially and can be bent by up to 2° so that they can be optimally adapted to the conditions at the construction site. Due to these preferences, the SK system comes as standard equipment on Putzmeister truck-mounted concrete pumps, but is also very well suited for shorter, fixed pumping distances on uneven terrain.

* When using special seals (Trilip), this may be up to 130 bar.

ZX Zentrifix^® system – Extremely resilient at high pressures and with heavy materials

Through static calculations and material testing, ZX concrete delivery pipes are designed for the specific required pressures in the concrete. Pumping under high pressure – this is where particularly high demands are placed on the delivery line. They must be absolutely leak-proof, stable and wear-resistant. The ZX delivery line system from Putzmeister fulfils these criteria with ease, and is therefore ideal for fixed, stationary pipe systems in concrete high-rise and long-distance placement. However, beyond construction sites, the system is tried and tested in a wide variety of industrial applications, not least due to it being absolutely leak-proof which is created thanks to the connection between male (ZXV) and female (ZXM) flanges. In this case, the O-ring inserted in a groove acts as a press-in seal which is pressed firmly in its place during assembly. In this way, the ZX system is particularly suitable for highly liquid materials and pulsating pressures. In addition to the high pressure resistance, the wall thicknesses, which are up to 11 mm, also provide a long wear lifetime.

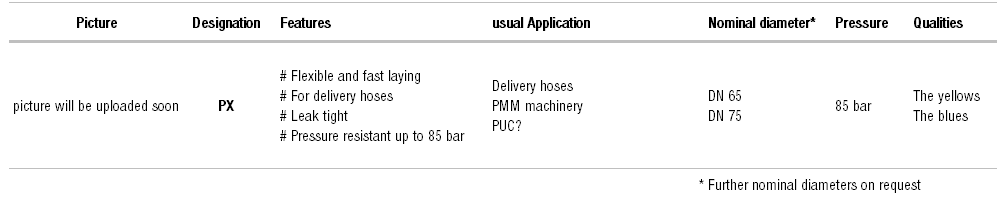

PX Ultraflex® system – Easy to install

It does what it it’s supposed to do. The PX Ultraflex® delivery line system from Putzmeister is distinguished by its high level of flexibility. Always flexible, whether in its possible applications, handling or when it comes to its ability to adapt to its surroundings. When used in construction as an extension line, with the Saniermobil or with our truck mixer concrete pumps (PUMI®), during concrete spraying or injection work – the PX hose system is easy to assemble and to dismantle with connections being quick and easy to establish by one person. The coupling connection is centred thanks to the male/female system, and the connection is rigid, yet it can still be axially rotated when the delivery pressure is low. The O-ring ensures that the line remains absolutely leak-proof and that the transition is then free from wear. When it comes to the wear characteristics, the PX Ultraflex® system is up there with the steel delivery lines (SK) and guarantees a long service life.

Why buy Proline?

Genuine parts: Original quality, available on demand

A fundamental promise: The label ‘Made by Putzmeister’ is an implicit promise to our customers that they will have a thinking, intelligent partner in all their undertakings. A partner that will deliver to their exact requirements irrespective of the complexity of the task or the remoteness of the scale. With enthusiasm backed by experience we approach every task afresh, be it a small or massive construction site, tight deadlines or unique concreting and manufacturing needs. We provide best-in-class equipment that is designed to last long. Our machines and plant provide high performance, durability, low maintenance for an economical operation.

Trust

At Putzmeister trust is more than a way of business, it is the essence of every collaboration. We treat our partners with respect, fairness and transparency at all times.

Proline delivery promise ex-works

Maximum amount of pipes: one arm kit. Delivery promise for Proline 1000, Proline 2000 and Proline 3000.
