TK 1006 E

Environmentally friendly with electric motor

The Putzmeister Thomkatt TK 1006 E is the compact concrete pump in the 1000 series, equipped with an environmentally friendly electric motor and the latest Ergonic ® 3 PS control. With an Output of up to 73 yd³/h (56 m³/h) and a max. delivery pressure of 1230 psi (85 bar) it is the big brother to the TK 1004 E.

With the TK 1006 E, it is possible to deliver normal concrete with a grain size of up to 1.25" (32 mm).

Key Features

Updated and reinforced frame
Galvanized brackets, hood components, and frame parts to improve corrosion protection
Fiberglass reinforced side covers and doors
Noise reduction design

General Information

Output

56 m³/hr
Delivery Pressure

85 bar
Max. Aggregate Size

32 mm
Strokes

36
Engine

Electric
Engine Power

55 kW
Material Cylinder Diameter-Stroke Length

1000x180 mm
Hopper capacity

300 l
Outlet Diameter

125 mm
Length x Width x Height

4750x1726x2130 mm
Weight

3250 kg
Trailer Type

F8/F80

Documents

Brochures

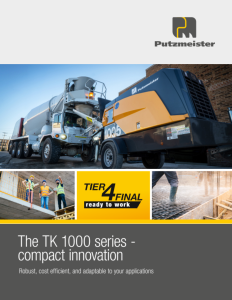

Thomkatt TK 1000 Brochure US
